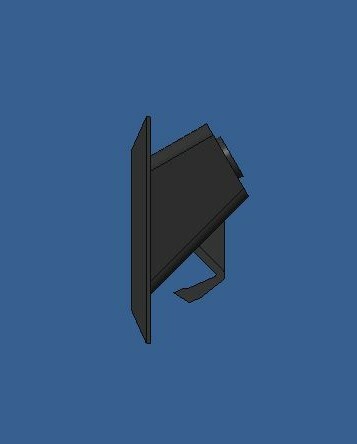

3” Extra Thick Black ABS Recessed Pull Handles
Part Number: CT-345-01-250
Our 3 inch black extra thick flush and recessed handles are perfect for when a recessed handle for a 1/4" (6mm) panel is required. The 1/4" snap makes it ideal to use as a snap-in plastic recessed handle for plexiglass panels or products that require a recessed handle for 1/4" wood or cardboard applications.
Features
- Designed for xtra thick panels up to 1/4". Contact us for a cutout recommendation.
Quantity (250 minimum)
Specifications
| Color | Black |
| Cutout | 1.21" x 3.45" (prototype cutout recommended) |
| Material | ABS |
| UL Rating | UL94-HB |
| Operating Temperature Range | -60 F to 150 F |
| Max Load Lifting | 300 lbs |
| Max Load Pulling | 100 lbs |
| Panel Thickness | Up to 1/4" |
