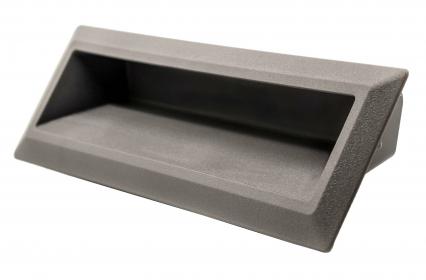

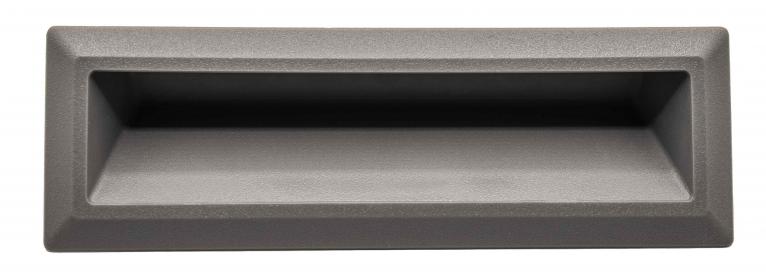

5" Gray Flush Polypropylene Recessed Handles
Part Number: CT-520-02
When a gray recessed handle is desired. Our 5 inch gray flush and recessed pull handles are commonly used as a handle or pull in cleaner environments such as medical facilities or labs. Also used as a handle to contrast with darker cabinets or equipment, or a recessed pull to blend in with gray products. Contact our team for more information on how our standard flush pull handles can be used for your specific application.
Quantity (250 minimum)
Specifications
| Color | Gray |
| Cutout | 1.21" x 5.21" |
| Material | ABS |
| UL Rating | UL94-HB |
| Operating Temperature Range | -60 F to 150 F |
| Max Load Lifting | 300 lbs. |
| Max Load Pulling | 100 lbs. |
| Panel Thickness | 22ga (.030 in.) - 16 ga (.060 in.) |
PDFs
